Firegex tests

GO BACK

Tests are a quick and dirty way to check if your modification to the backend code dind't break anything.

Running a Test

$ ./test.py
usage: test.py [-h] [--address ADDRESS] [--service_port SERVICE_PORT] [--service_name SERVICE_NAME] --password PASSWORD

If you are running firegex locally, just run test.py -p FIREGEX_PASSWORD. Otherwise, select a remote address with -a http://ADDRESS:PORT/ .

Output of the tests:

Testing will start on http://127.0.0.1:5000/
Sucessfully logged in ✔
Sucessfully created service Test Service with public port 1337 ✔
Sucessfully received the internal port 38222 ✔
Sucessfully started service with id test-service ✔
Successfully tested first proxy with no regex ✔
Sucessfully added regex to service with id test-service ✔
The malicious request was successfully blocked ✔
Sucessfully stopped service with id test-service ✔
The request wasn't blocked ✔
Sucessfully delete service with id test-service ✔

The testing methodology will soon be updated with more edge-cases.

Running a Benchmark

./benchmark.py
options:
    --address ADDRESS, -a ADDRESS
                            Address of firegex backend
    --service_port SERVICE_PORT, -P SERVICE_PORT
                            Port of the Benchmark service
    --service_name SERVICE_NAME, -n SERVICE_NAME
                            Name of the Benchmark service
    --password PASSWORD, -p PASSWORD
                            Firegex password
    --num_of_regexes NUM_OF_REGEXES, -r NUM_OF_REGEXES
                            Number of regexes to benchmark with
    --duration DURATION, -d DURATION
                            Duration of the Benchmark in seconds
    --output_file OUTPUT_FILE, -o OUTPUT_FILE
                            Output results csv file
    --num_of_streams NUM_OF_STREAMS, -s NUM_OF_STREAMS
                            Output results csv file
    --new_istance, -i     Create a new service

Benchmarks let you evaluate the performance of the proxy. You can run one by typing in a shell test.py -p FIREGEX_PASSWORD -r NUM_OF_REGEX -d BENCHMARK_DURATION -i.

It uses iperf3 to benchmark the throughput in MB/s of the server, both with proxy, without proxy, and for each new added regex. It will automatically add a new random regex untill it has reached NUM_OF_REGEX specified in the arguments.

You will find a new benchmark.csv file containg the results.

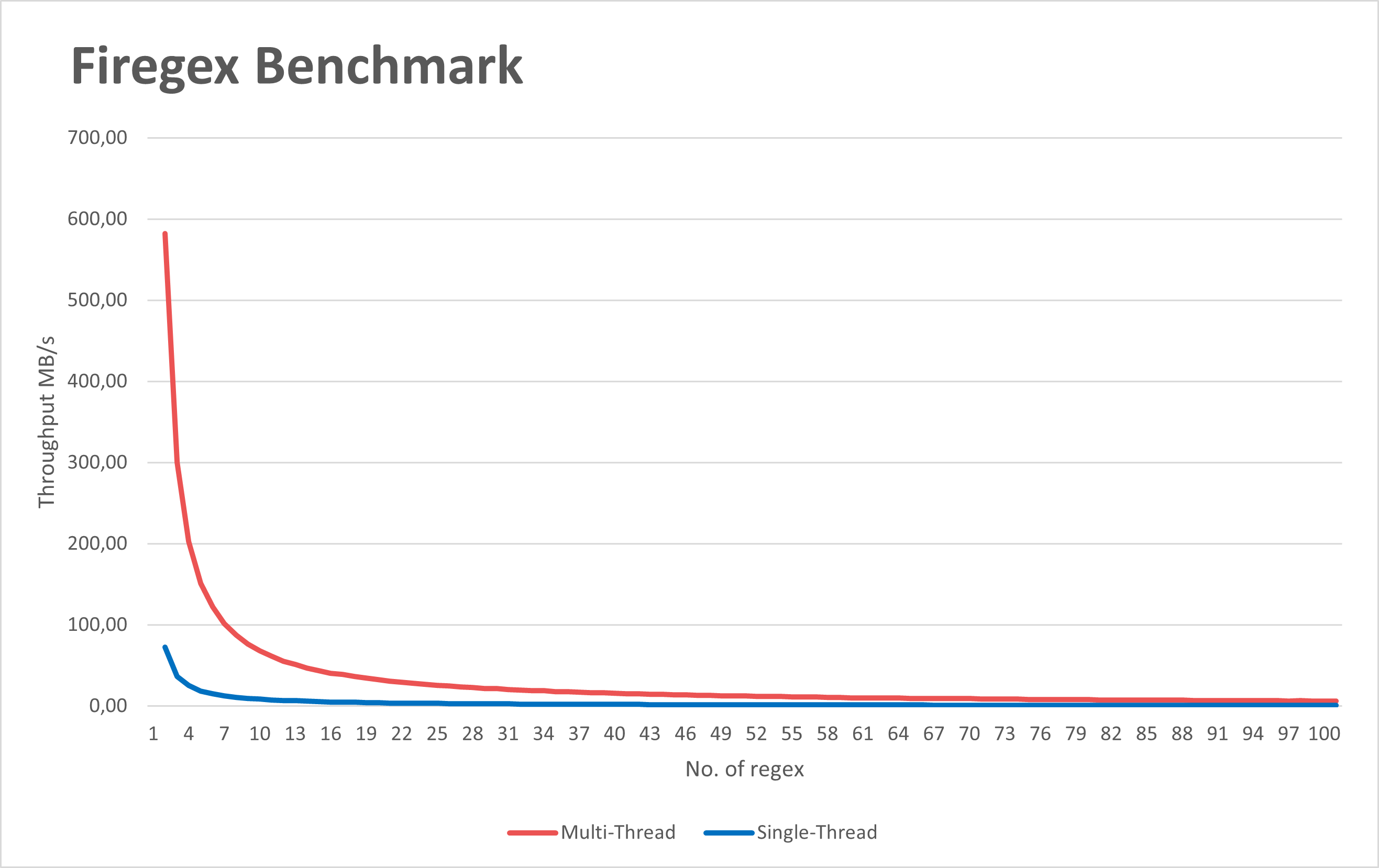

Firegex Performance Results

The test was performed on:

AMD Ryzen 7 3700X (16 thread) @ 3.600GHz
RAM Speed: 3200 MT/s (Dual Channel)
Kernel: 5.18.5-arch1-1

Command: python3 benchmark.py -r 100 -d 1 -s 50
